Ultrasonic Humidifier
The Ultrasonic Humidifiers are used at various locations and process that requires controlled humidity. The product range is manufactured in different models and dimension specifications so as to suit various industrial requirements. The offered equipment is designed in accordance with international standards of quality and can be tailor made as per the specific requirement of the client. Humidifiers are used in industries such as Cold Storages, Ripening Chambers, Textiles, Bakery, Tea, Tobacco, Paper and many others.

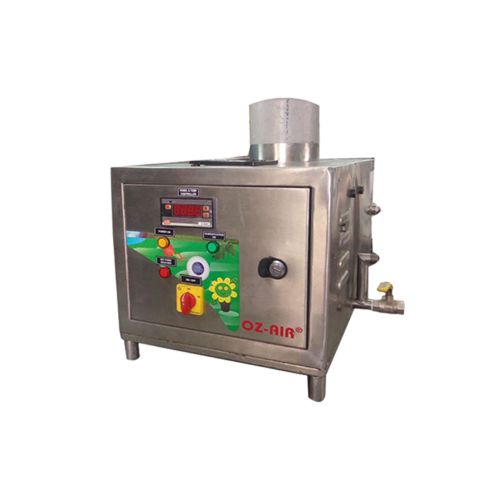

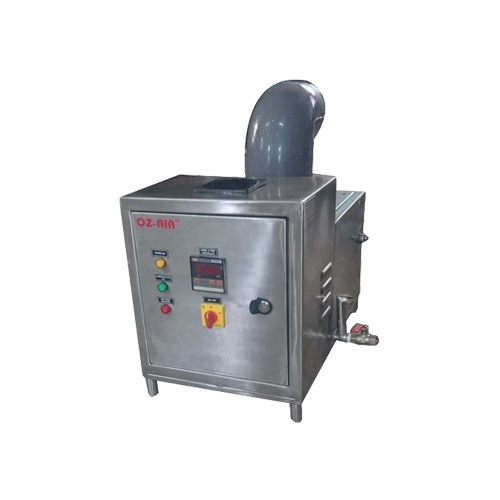

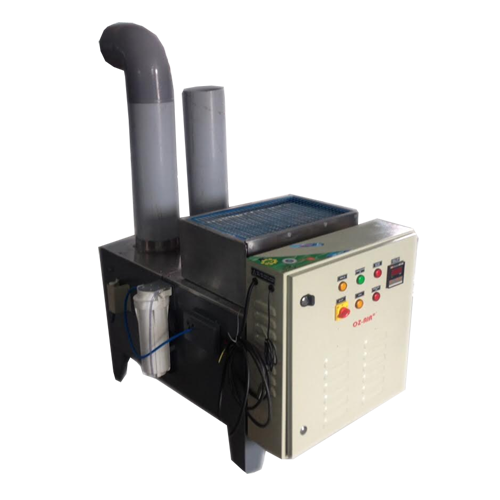

Industrial Ultrasonic Humidifier
The Industrial Ultrasonic Humidifier helps in the regulation of humidity in the required locations. The humidifier is designed to increase the low relative humidity and can protect products, equipment and furniture from the harmful environment. The humidifier breaks the water in to small particles using ultrasonic energy and thus the creation of cold mist for uniformly dispersing into the environment or injecting into the AHU’s ducts.

  • A heavy duty equipment and available in different capacities
  • The intelligent control panel is used for controlling the level of Humidity to the set value
  • Auto Water Level Controller draws required quantity of water and has a Low water level Trip
  • The equipment has a SS-304 enclosure which is corrosion resistant and long life
  • The humidifier can have remote indications and controls as per requirement
  • The humidity logs can be maintained using a data logging option (Optional)
  • Cold Rooms and cold storages
  • Ripening Chambers
  • Bakery Units
  • Controlled Environment Chambers
  • Yarn Conditioning & Packing Sections
  • Weaving & Knitting Units
  • Q.C. Labs & Research Chambers
  • Mushroom & Orchid Cultivation
  • Green houses & Nurseries
  • Chicken Breeding & Horticulture
  • Tea & Tobacco Industries
  • Paper & Pulp Mills
  • Usage: Industrial Use
  • Brand: Idst
  • Type: Ultrasonic Humidifier
  • Model Number: IDST-03
  • Voltage: 220
  • Capacity (In Tons): 200
Comparison of Ultrasonic Humidifiers & Thermal Humidifiers
No. Features Thermal humidifier Ultrasonic Humidifier
1 Operating Principle Water Heating Ultrasonic Oscillation
2 Main Operating Element Electrical Heater Ultrasonic Transducer
3 Operating Temp. 100 0C or boiling point Atmospheric Temp.
4 Energy Consumed High Low
5 Energy for Latent Heat Applicable Not applicable
6 Deposition of Salt on the elements Yes No
7 Blow down requirement Very high Low
8 Water quality Low TDS Low & Medium TDS
9 Maintenance requirement High Very low
10 Elements cleaning Frequent Less frequent
11 Size of the equipment Bigger Smaller
12 Set Humidity accuracy Medium High
13 Initial expenditure High Medium
14 Operating expenses High Low

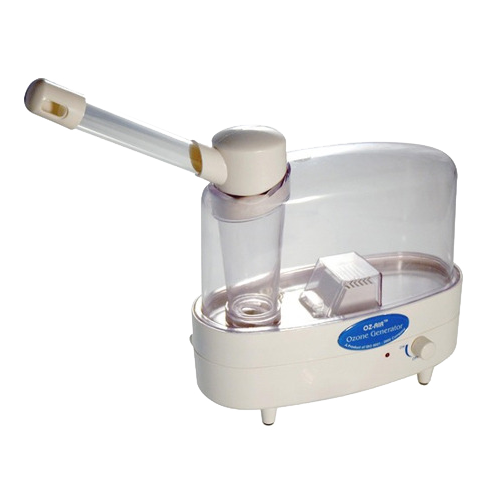

Ultrasonic Air Humidifier with Ozonator
The Ultrasonic Air Humidifier with Ozonator works on the principle of ultrasonic vibrations without the requirement of any heating element. The humidifier is designed and manufactured in compliance with international standards and are used in industries such as agriculture, textiles tobacco, paper and livestock
  • Unique in design. Humidity indications and control can be fix as an optional features
  • Have transparent water tank
  • It has a regulator for the controlling the emission of humidifier mist
  • The equipment can humidify up to 500 ml of water per hour
  • The air is sterilize using ozone function of the humidifier
  • The humidifier will shut down if there is low water level
