Home / Our Products / Air Quality Monitors / Integrated IAQ Monitor

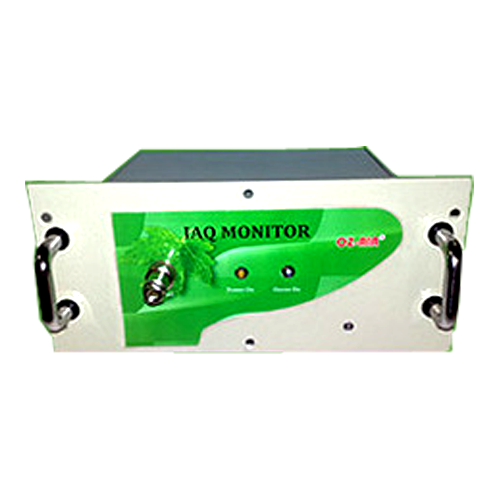

Integrated IAQ Monitor
Integrated IAQ Monitor
We are manufacturing and exporting a wide range of Integrated IAQ Monitors. These advanced monitors enable simultaneous monitoring of six or less common air quality parameters with a single instrument. The six individual sensors provide continuous measurement of environmental Carbon Dioxide (CO2), Carbon Monoxide (CO), Total Volatile Organic Compounds (TVOC), Ozone (O3), Temperature, and Humidity.

Each of the sensor is capable of providing 0 - 10 VDC, 0 - 5 VDC or 4 - 20 mA (user specified). This helps to ensure accurate and precise input to operate IAQ devices for improving the indoor air quality along with energy reduction by saving upon capital and operating costs. Further, the air quality data can be logged to a removable SD card or PC and can be exported to other programs for generating reports.

  • Multiple gas measurement sensors
  • Advanced sensors with (GSS) technology
  • Optical sensor technology (PID / NDIR)
  • Active air sampling system
  • Zero and span calibration facility
  • Rapid real time data sampling
  • Touch screen & colored Display
  • PC data logging provision
  • Compact and portable
  • Rated for continuous operation
  • Robust and reliable
  • Low maintenance
  • Easy to install
Models & Features

Models Features
  • Displays all IAQ parameters on a 5.7 inch color high resolution programmable touch screen
  • It provides graphical representation of all IAQ parameters along with time history records
  • Displays all IAQ parameters on a 4 Line X 16 Character Backlit Monochrome LCD
  • With programmable Touch Pad Membrane Switch
  • It provides Numeric representation of all IAQ parameters except time history records
  • Indicates parameters (Auto / Manual Power on sensor status ozone generation) Series of pilot lamps and digital display mounted on the front cover
  • Best suited for budget applications or applications where continuous monitoring of IAQ parameters is not required
  • Remote location display allows display of all IAQ parameters and facilitates
  • Programming of sensor board Recommended for use with AQM 6 ND

Additional Features
  • The Air Quality Monitor (AQM 6) comes with an installation assembly for fast and easy installation
  • The AQM 6 is fully factory assembled and the field wiring terminates on factory provided connectors for easy connection and disconnection
  • AQM 6 comes with a 5.7 inch color high resolution programmable touch screen for quick access to all IAQ parameters with an ease of a touch
  • The controller provides Quick, reliable, and accurate readings
Flexible Mounting Options
  • The monitor may be duct mounted, or installed in the space to be treated and monitored
  • Sensors can be mounted away from Monitor for convenience of operations
  • High rating contacts for direct connection to most controlling devices such as damper actuator, electrical contractor, or any other electrical device
  • All dry contacts are user assignable to any parameter
  • Each IAQ parameter can be field programmed to provide 0 - 10 VDC analog signals for modulating IAQ devices or for interface to BAS / BMS
  • AQM 6 comes with password protection, which prevents access to unauthorized persons. All parts of the sensors are certified to the respective regulatory bodies
  • All sensors are factory calibrated with a provision of field calibration as and when required
