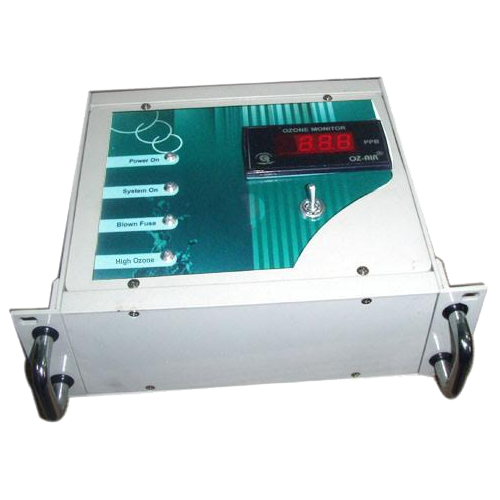

Ozone Monitor & Controller
Ozone Monitor & Controller
Our Advanced Ozone Monitors and Controllers measures accurate and fast environmental Ozone Concentration in a flexible cost effective package. The outputs include analog voltage, relay and status indicators Digital Read out with RS 232 communication interface (optional). The signal from Ozone sensor is fed to the Central Controller for necessary feed back and control. Central Controller keeps the Ozone Concentration of environment in the set limits as per standards.
Features
  • State-of-the-art semi-conductor based technology
  • High Accuracy active sampling
  • LED for ease of monitoring
  • High concentration alarms & cut off
  • Long Service Life
  • Low maintenance
  • Easy to install
Specifications
  • Ozone concentration monitor cum sensor is provided for the occupied areas. At least one Monitor cum Sensor is provided for each AHU serving the area.
  • Visual display is provided on the outer case of the Monitor comprising a digital display indicating the concentration of ozone in the occupied space.
  • The sensor, monitor and all components are mounted in one neat and compact case, suitable for wall mounting or duct installation. The indicating lights or the Display are mounted on the cover of the case
  • The monitor has a pot free contact. In the event of ozone concentration reaching the set alarm value, “Normally Close” changes to “Normally Open”. The change over contact can be used to switch off the Ozone Generator, when concentration exceeds the set value and provide an audiovisual alarm.
  • The monitor also provides a linear 0 to 5 Volts DC output voltage, proportional to concentration of ozone. This can be interfaced with the BMS to record continuously concentration in PPB or PPM. This will also enable shutting down the ozone generators through the BMS, if the set high level is reached.
  • The monitor is capable of interfacing with BMS
  • Input power source is 24 volts, DC, provided. Suitable adaptor for this is provided with the Monitor.

Instrument Ozone Air Monitor & Controller
Make OZ-AIR®
Gas detection Ozone
Options Available Wall Mounted / Duct Mounted
Sensor Built-in
Type Gas sensitive semiconductor (GSS)
Meter Range 10-1000 PPB
Least Count 1 PPB
Accuracy ± 2%
Display Backlit LCD / LED
Relay set point User adjustable
Enclosure casing Flame resistant thermoplast PS / SS
Rate Of Measurement Continuous
Alarm Setting Settable Throughout The Range
Operating temperature -5oC to 50oC
Operating relative humidity 5% to 95% non compensating
Digital output RS 232 (optional)
Analog output 0 – 5 VDC
Relay output 24 V; 5A (MAX), 220 V AC, 2 Amp
Power supply 11 - 24 VDC
Power consumption 2.5 – 6 Watts (MAX)
Enclosure rating IP 20 & NEMA 1 equivalent
Approvals Part 15 of FCC Rules
