Home / Our Products / Oxygen Plants
Oxygen Plants
We have the expertise to design & develop high efficiency oxygen plants. These oxygen plants are safe and highly economical and consume minimal energy resources for operation. These oxygen plants can be designed as per the specifications of customers and as per their application requirements.

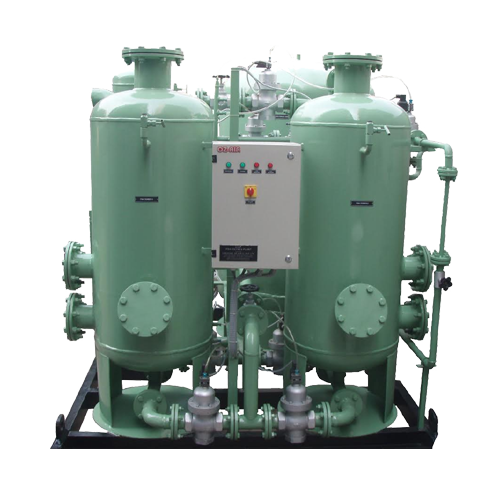

Oxygen Generators (P.S.A Type)
We manufacture and supply superior quality oxygen generators for varied requirements of our clients. Designed in compliance with strict industry standards, our oxygen generators are known for their easy operation, handling, least maintenance cost and durability. Based on microprocessor controlled technology, these generators have found wide applications in areas like drinking water treatment, medical area, environment air treatment and many more.
Oxygen Generators (P.S.A Type)
We manufacture and supply superior quality oxygen generators for varied requirements of our clients. Designed in compliance with strict industry standards, our oxygen generators are known for their easy operation, handling, least maintenance cost and durability. Based on microprocessor controlled technology, these generators have found wide applications in areas like drinking water treatment, medical area, environment air treatment and many more.
How Oxygen is Produced
Separation of Oxygen from air is effected by P.S.A (Pressure Swing Adsorption) process where adsorption of Nitrogen is carried out by using synthetic zeolite, known as molecular sieves. Oxygen generator consists of two adsorption vessels, filled with molecular sieves. These vessels are alternately charged with compressed air where, Nitrogen and other impurities are adsorbed and oxygen flows into an oxygen surge tank. After the adsorption cycle, one vessel is depressurized to atmospheric pressure, thereby discharging the adsorbed nitrogen and sieve bed is regenerated by counter current oxygen flow from the buffer tank.
Electric Power Required
3 Phase electrical supply is needed. Power Control Switch Gear Panel is a part of the Plant. Actual Power consumption is 1-1.5 KWH per cubic meter of Oxygen produced.
Compressed Air
Air will be supplied by an oil free air compressor or can be drawn from an existing compressed air supply of client at 4-6 bars. Air passes through a set of filters prior to entering in PSA unit.
Oxygen Concentration
Our Standard generators produce Oxygen gas of 93 % ± 2% concentration which is sufficient for all important medical and industrial applications. Moisture and CO2 present in air also absorbed and rejected. The Oxygen flow is, therefore, very dry and contains only Argon and small percentages of Nitrogen.
Oxygen Pressure
Adjustable 0-3.5 kg / cm². For higher pressure, an additional Oxygen compressor can be provided
Operation Costs
Running costs of Oxygen generators are substantially lower than buying Oxygen from the market. The only major operating cost is electric power for the compressed air. The production of 1 Nm³ oxygen requires an average 1-1.5 KWH. (Lesser for large installations).
Installation
Standard models are delivered completely assembled and ready to plug in. Special requirements can be complied with a specific requirement
Process Control
The Process of Oxygen production is fully automatic and takes 15 to 30 minutes to completely stabilize & reach the required purity level. Thus oxygen can be produced as and when required.
Medical Oxygen Systems
Our Oxygen generators are most suitable for medical application in providing uninterrupted supply of oxygen round the clock. As per US pharmacopeia 93% ± 2% purity oxygen is suitable for Hospital Applications. Fully automatic Hospital Oxygen system can be supplied with reserve oxygen supplies.

Our Oxygen generators are most suitable for medical application in providing uninterrupted supply of oxygen round the clock. As per US pharmacopeia 93% ± 2% purity oxygen is suitable for Hospital Applications. Fully automatic Hospital Oxygen system can be supplied with reserve oxygen supplies.
Maintenance
Generators are virtually maintenance free with only periodic change of filter elements.


SL. NO Model Capacity Power Consumption Size
Cu.Mt/Hr Kwh L x W x H
1 OZ AIR 02-1 1 1.5 1.5 x 1.5 x 1.5
2 OZ AIR 02-3 3 4 2.0 x 1.5 x 1.5
3 OZ AIR 02-5 5 7 2.5 x 1.8 x 2.0
4 OZ AIR 02-10 10 12 4.0 x 2.0 x 2.2
5 OZ AIR 02-15 15 16 4.0 x 2.0 x 2.2
6 OZ AIR 02-25 25 27 4.5 x 2.0 x 2.2
7 OZ AIR 02-30 30 31 5.0 x 2.5 x 2.2
8 OZ AIR 02-50 50 52 6.0 x 3.0 x 2.2
9 OZ AIR 02-75 75 76 7.0 x 3.5 x 2.5
10 OZ AIR 02-100 100 105 8.0 x 3.5 x 2.5
11 OZ AIR 02-200 200 205 10.0 x 4.0 x 3.0
12 OZ AIR 02-300 300 305 12.0 x 5.0 x 3.5
