Ozone Generators

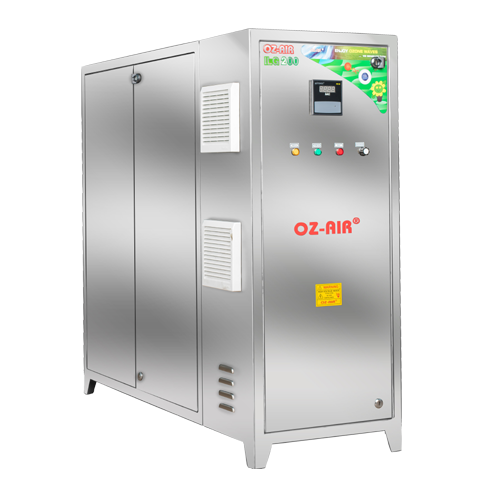

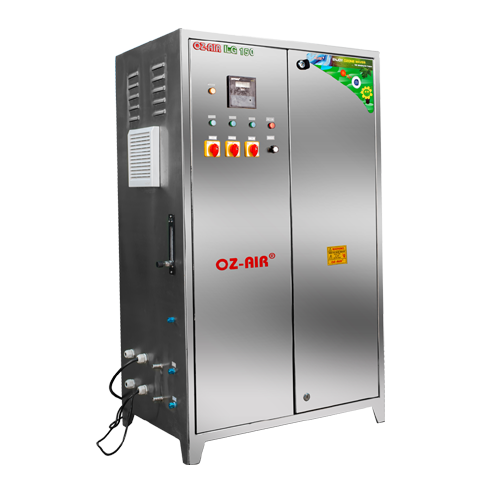

ILG Series
The OZ-AIR® ILG Series of ozone generators incorporates advanced ozone generation technology alongwith a state-of-the-art IGBT power supply unit, PLC control, process related control equipments and skid interconnections. The design is a result of years of R & D and feedback from hundreds of operators which makes it most the advanced and superior ozone generation technology availaible today featuring several function indicators, flowmeters, variable ozone output form 5 - 100%, voltage HI - LOW cutoff and other additional protections and interlocks to ensures perfect operation and protection of the ozone generator for years of trouble free operation. The advanced PLC system ensures flexible operation and allows integration into all types of plant concepts.
How it works
Ozone, the triatomic form of molecule, is generated by recombining oxygen atoms with oxygen molecules. This process takes place when dry air or oxygen is allowed to pass through the dielectrics of the ozone generating module in the ozone generator vessel.The ozone generating module is powered using a high voltage / high frequency IGBT based power supply unit inside the ozone generator control panel. The system is designed for continuous operation at full loads under harsh industrial conditions. The ozone generating module is cooled by either using cooling water to ensure high standards of effectiveness and effeciency.




Main Features
  • Production rates from 100 gm/hr to 300 kg/hr
  • The OZ-AIR ILG series is also available for air feed gas
  • Highly concentrated ozone at full load
  • Advanced IBGT based power supply unit
  • Choice of PLC with user friendly interface
  • Ozone output regulation from 5 - 100%
  • Water cooled horizontal vessel type ozone generator
  • Robust industrial design for reliability and long service life
  • Fully assembled skid mounted system for easy installation
  • Digital Ozone output in gm/hr and fault diagnostics
Series Highlights
  • User friendly
  • High performance
  • Low specific power
  • Easily integratable
  • Low service requirement
  • High ozone concentration
  • Fully assembled skid mounted
Applications
  • Bottled water disinfection
  • Portable water treatment
  • Swimming pool water treatment
  • Industrial processes
  • Lake Remediation
  • Cooling towers
  • Waste water
  • Hydroponics
  • Aquaculture
  • Agriculture
  • Ozonolysis
Technical Specifications
ILG Series of Ozone Generators

Models Ozone Production gm/hr Module Pressure kg/cm2 Feed Gas Required Nm3/hr Cooling Water (m3/hr) Power (KW) Dimensions LxWxH(MM) Weight (kg)
Oxygen (6 wt %) Air (3 wt %) Oxygen Air Oxygen (6 wt %) Air (3 wt %)
OZ-AIR® ILG 50 50 34 0.75 2.0 0.39 0.95 0.08 0.63 1200*850*350 50
OZ-AIR® ILG 75 75 50 0.75 2.0 0.58 1.42 0.12 0.94 1200*950*350 60
OZ-AIR® ILG 100 100 67 0.75 2.0 0.78 1.90 0.16 1.25 1530*1000*350 70
OZ-AIR® ILG 150 150 101 1.20 2.0 1.16 2.85 0.25 1.88 1530*1300*350 100
OZ-AIR® ILG 200 200 134 1.20 2.0 1.55 3.80 0.33 2.50 1530*1000*700 130
OZ-AIR® ILG 250 250 168 1.20 2.0 1.94 4.75 0.41 3.13 1530*1200*700 145
OZ-AIR® ILG 300 300 201 1.20 2.0 2.33 5.70 0.49 3.75 1530*1200*700 165
OZ-AIR® ILG 400 400 268 1.20 2.0 3.10 7.60 0.65 5.00 1530*1500*700 200
OZ-AIR® ILG 500 500 335 1.20 2.0 3.88 9.50 0.82 6.25 1800*1500*850 420
OZ-AIR® ILG 750 750 503 1.50 2.0 5.81 14.24 1.23 9.38 1800*1900*850 530
OZ-AIR® ILG 1000 1000 670 1.50 2.0 7.75 18.99 1.64 12.50 1800*2100*850 650
OZ-AIR® ILG 1500 1500 1005 1.50 2.0 11.63 28.49 2.45 18.75 2000*2000*1150 880
OZ-AIR® ILG 2000 2000 1340 1.50 2.0 15.50 37.98 3.27 25.00 2000*2500*1500 980
OZ-AIR® ILG 2500 2500 1675 1.50 2.0 19.38 47.48 4.09 31.25 2400*3000*1500 1200
OZ-AIR® ILG 5000 5000 3350 1.50 2.0 38.76 94.96 8.18 62.50 2800*3000*1800 1500
OZ-AIR® ILG 10000 10000 6700 1.50 2.0 77.52 189.92 16.36 125.00 2800*4000*2000 2500
