Home / Our Products / Dissolved Ozone Monitor & Controller

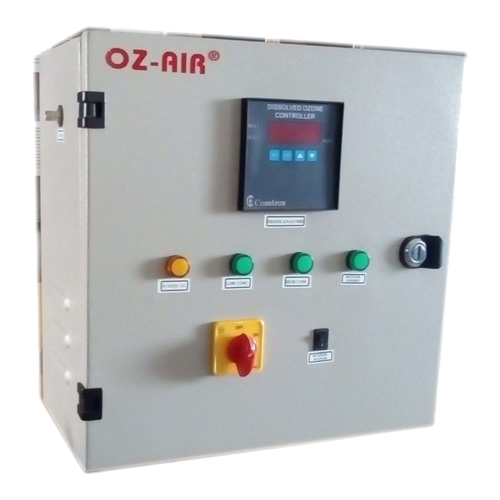

Dissolved Ozone Monitor & Controller
With sound knowledge of the varied aspects of market, we are offering our clients a wide array of Dissolved Ozone Monitor & Controller. These monitor and controllers are used for on-line monitoring and control of ozonation systems. Our offered controllers are demanded in pharmaceutical industries as it is ideally suited to water bottling systems or municipal water treatment. We fabricate these plants using sophisticated technology, which are obtained from well known and leading vendors of the industry. Our products are featured with excellent quality, corrosion resistance and low power consumption.
Dissolved Ozone Monitor & Controller
Driven with perfection, we have been able to provide our customers with a exclusive range of Dissolved Ozone Monitor and Controller. Ozonation systems are controlled and monitored through these controllers. These products are manufactured utilizing high grade technology and raw material with the help of sophisticated machinery.
Design specifications:
  • Make OZ-AIR®
  • Operating principle: ORP based
  • Range: 0.05 ppm – 10 ppm
  • Display: 3½ LCD display
  • LCD size: 12 mm height
  • Set points: Two with delayed timer for high / low
  • Set point adjustment: Settable throughput the range
  • Power supply: 220 v, Single supply
  • Recorder output: 0 – 1 Volts or 4 – 20 ma
Sensor Specifications:
  • Make: Broadly James, USA
  • Model: SC 12102 (BMC)
  • Diameter: 12 mm
  • Range: 0 – 2000 mv
  • Temperature: 0 – 150 °c Pressure: 100 PSIG
Mounting Specifications:
  • Body: SS – 316
  • Diameter: 25 mm
  • Connection: ¾ NPT Male


Manufacturer of
Ozone Generators, Ozone Monitors & Controllers, Ozone Accessories, Ozonation Systems

having a rich experience in the field of Ozone and Ozone Applications


C-228, Sector-63, Noida - 201305, (U.P.)
+91-9810077061, 9560343336
+(91)-(0120)-4325072
