Ozone Generators
Compact Series

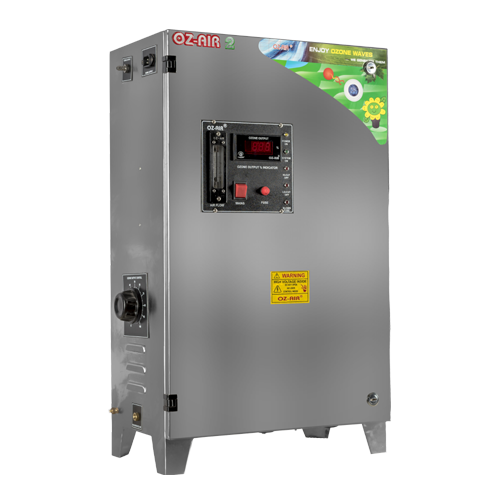

The OZ-AIR® Compact Series of ozone generators are small air-cooled units specifically designed for lesser capacities incorporating microprocessor based control system to ensure a smooth and maintenance free operation. It features several function indicators, flowmeter, variable ozone output from 5 to 100% and Voltage Hi - Low cutoff. Additional protections and interlocks ensure perfect operation and protection of the ozone generator.
How it works
Ozone is produced when dry air or oxygen gas is passed through the dielectrics of the ozone generating module. The ozone generating module is powered by a high voltage / high frequency board mounted inside the ozone generator. The board is designed for intermittent or continuous operation. The ozone generating module is cooled using cooling fans which brings fresh air from one side and throws the heated air from the other side, which helps in keeping the modules under normal temperature and ensures efficient operation of the ozone generator.




Main Features
  • Production rates from 0.5 gm/hr to 5 gm/hr from dry air
  • Highly concentrated ozone effective application suitability
  • Advanced technology featuring microprocessor based control
  • High voltage / high frequency based power supply
  • Economical and very compact dimensions for easy integration
  • Robust industrial design and quality for reliability and long life
  • Ozone output regulation from 5 - 100%
  • Full twelve month warranty and technical backup facilities
Product Highlights
  • Safe, quiet and energy efficient
  • High performance
  • Compact and versatile" Low -cost
  • High ozone concentration
  • Low specific power
  • User friendly
  • Easily integrated
  • Low service requirement
Applications
  • Bottled water disinfection
  • Portable water treatment
  • Swimming pool water treatment
  • Research and development
  • Education
Technical Specifications
Compact Series of Ozone Generators (Without Feed Gas System)

Models Ozone Production gm/hr Module Pressure Kg/cm2 Feed Gas Power (Watts) Dimensions
H X B X W (mm)		 Weight (Kg)
Dry Air Oxygen Air Oxygen Oxygen LPM Air LPM
OZ-AIR® 0.5 OXY 0.3 0.5 0.5 0.35 1.0 1.0 40 450 X 350 X 220 9
OZ-AIR® 1 OXY 0.6 1.0 0.75 0.40 1.0 2.0 60 750 X 450 X 220 33
OZ-AIR® 2 OXY 1.2 2.0 0.75 0.40 1.5 3.0 70 750 X 450 X 220 35
OZ-AIR® 3 OXY 1.8 3.0 0.75 0.40 2.0 4.0 90 750 X 450 X 220 38
OZ-AIR® 4 OXY 2.4 4.0 0.75 0.40 2.5 5.0 110 750 X 450 X 220 41
OZ-AIR® 5 OXY 3.0 5.0 0.75 0.45 3.0 6.0 140 670 X 650 X 260 45

Compact series of Ozone Generators (With Inbuilt Oxygen Enriched Feed Gas System)

Models Ozone Production
gm/hr		 Air Feed
LPM		 Power
(Watts)		 Dimensions
H X B X W (mm)		 Weight
(Kg)
OZ-AIR® 0.5 1.0 1.5 100 550 X 350 X 220 14
OZ-AIR® 1 1.0 2.0 140 750 X 450 X 220 38
OZ-AIR® 2 2.0 3.0 150 750 X 450 X 220 40
OZ-AIR® 3 3.0 4.0 160 750 X 450 X 220 43
OZ-AIR® 4 4.0 5 170 750 X 450 X 220 46
OZ-AIR® 5 5.0 6.0 180 600 X 700 X 250 52
